NCERT Solutions Class 9 Maths Chapter 12-Heron’s Formula

Exercise 12.1

Question 1. A traffic signal board, indicating ‘SCHOOL AHEAD’, is an equilateral triangle with side ‘a’. Find the area of the signal board, using Heron’s formula. If its perimeter is 180 cm, what will be the area of the signal board?

Solution:

Given in the Question,
Side of the signal board = a
Perimeter of the signal board = 3a = 180 cm
∴ a = 60 cm
Semi perimeter of the signal board (s) = \frac{3a}{2}
By using Heron’s formula,
Area of the triangular signal board will be =
=\sqrt{s(s-a)(s-b)(s-c)} \\ =\sqrt{\left(\frac{3a}{2}\right)\left(\frac{3a}{2}-a\right)\left(\frac{3a}{2}-a\right)\left(\frac{3a}{2}-a\right)} \\ =\sqrt{\frac{3a}{2}\times\frac{a}{2}\times\frac{a}{2}\times\frac{a}{2}} \\ =\sqrt{\frac{3a^4}{16}}\\ =\sqrt{\frac{3a^2}{4}} \\ =\sqrt{\frac{3}{4}}\times60\times60=900\sqrt3\ cm^2

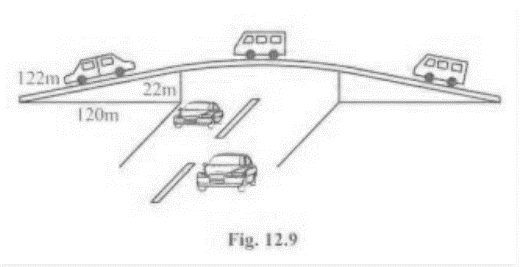

Question 2. The triangular side walls of a flyover have been used for advertisements. The sides of the walls are 122 m, 22 m and 120 m (see Fig. 12.9). The advertisements yield an earning of ₹5000 per m^2 per year. A company hired one of its walls for 3 months. How much rent did it pay? Solution:

The sides of the triangle ABC are 122 m, 22 m and 120 m respectively.
Now, the perimeter will be (122+22+120) = 264 m
Also, the semi perimeter (s) = \frac{264}{2} = 132 m
Using Heron’s formula,
Area of the triangle =
= \sqrt{s(s-a)(s-b)(s-c)} \\ =\sqrt{132\left(132-122\right)\left(132-22\right)\left(132-120\right)m^2}\\ =\sqrt{132\times10\times110\times12}\ m^2\ \\ =1320m^2
We know that the rent of advertising per year = ₹ 5000 per m^2
∴ The rent of one wall for 3 months = Rs.\frac{1320\times5000\times3}{12}\ =\ Rs.\ 1650000

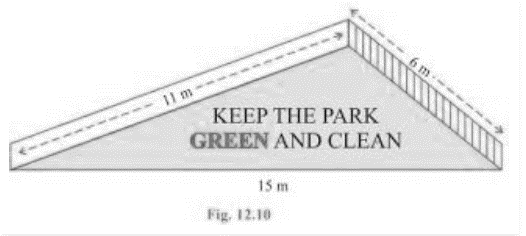

Question 3. There is a slide in a park. One of its side walls has been painted in some color with a message “KEEP THE PARK GREEN AND CLEAN” (see Fig. 12.10 ). If the sides of the wall are 15 m, 11 m and 6 m, find the area painted in color. Solution:

Given that the sides of the wall as 15 m, 11 m and 6 m.
So, the semi perimeter of triangular wall (s) = \frac{15+11+6}{2}\ m\ =\ 16\ m
Using Heron’s formula,
Area of the message
=\sqrt{s(s-a)(s-b)(s-c)}\\ =\sqrt{[16(16-15)(16-11)(16-6)}\ m^2\\ =\sqrt{16\times1\times5\times10}\ m^2 \\ =20\sqrt2m^2

Question 4. Find the area of a triangle two sides of which are 18 cm and 10 cm and the perimeter is 42cm.

Solution:

Assume the third side of the triangle to be “x”.
Now, the three sides of the triangle are 18 cm, 10 cm, and “x” cm
It is given that the perimeter of the triangle = 42cm
So, x = 42-(18+10) cm = 14 cm
∴ The semi perimeter of triangle = \frac{42}{2} = 21 cm
Now Using Heron’s formula,
Area of the triangle is given by:
=\sqrt{s(s-a)(s-b)(s-c)}\\ =\sqrt{21(21-18)(21-10)(21-14)}\ cm^2 \\ =\sqrt{21\times3\times11\times7}\ m^2 \\ =21\sqrt{11}\ cm^2

Question 5. Sides of a triangle are in the ratio of 12 : 17 : 25 and its perimeter is 540cm. Find its area.

Solution:

The ratio of the sides of the triangle are given as 12: 17: 25
Now, let the common ratio between the sides of the triangle be “x”
∴ The sides are 12x, 17x and 25x
It is also given that the perimeter of the triangle = 540 cm
12x+17x+25x = 540 cm
54x = 540cm
So, x = 10
Now, the sides of the triangle are 120 cm, 170 cm, and 250 cm.
So, the semi perimeter of the triangle (s) = \frac{540}{2}= 270 cm
Now, Using Heron’s formula,
Area of the triangle is given by:
=\sqrt{s(s-a)(s-b)(s-c)}\\ =\sqrt{270(270-120)(270-170)(270-250)}\ cm^2\\ =\sqrt{270\times150\times100\times20}\ cm^2 \\ =9000\ cm^2

Question 6. An isosceles triangle has perimeter 30 cm and each of the equal sides is 12 cm. Find the area of the triangle.

Solution:

Let the third side bex.
It is given that the length of the equal sides is 12 cm and its perimeter is 30 cm.
So,
30 =12+12+x
∴ The length of the third side = 6 cm
Thus, the semi perimeter of the isosceles triangle (s)=\frac{30}{2} cm = 15 cm
Using Heron’s formula,
Area of the triangle is given by:
= \sqrt{s(s-a)(s-b)(s-c)}\\ =\sqrt{15(15-12)(15-12\left(15-6\right)\ }cm^2\\ =\sqrt{15\times3\times3\times9}\ cm^2\\ =9\sqrt{15}\ cm^2

Exercise 12.2

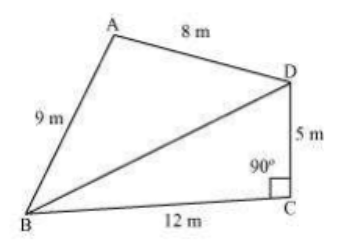

Question 1. A park, in the shape of a quadrilateral ABCD, has C = 90°, AB = 9 m, BC = 12 m, CD = 5 m and AD = 8 m. How much area does it occupy?

Answer:

Firstly, construct a quadrilateral ABCD and join BD.
We know that from the question,
C = 90°, AB = 9 m, BC = 12 m, CD = 5 m and AD = 8 m
The diagram is shown below: Now, apply Pythagoras theorem in \mathrm{\Delta BCD}
BD^2\ =\ BC^2\ +CD^2\\ \Rightarrow\ BD^2\ =\ 122+52\\ \Rightarrow\ BD^2\ =\ 169\\ \Rightarrow\ BD\ =\ 13\ m
Now, the area of \ \mathrm{\Delta BCD}\ =\ \left(\frac{1}{2}\ \times12\times5\right)\ =\ 30\ m^2

The semi perimeter of \mathrm{\Delta ABD}\\ (s)\ =\ \left(\frac{perimeter}{2}\right)\\ =\frac{8+9+13}{2}\ m\\ =\frac{30}{2}m\ =\ 15\ m\

Using Heron’s formula we get,
Area of ΔABD
=\sqrt{s\left(s-a\right)(s-b)(s-c)} \\ =\sqrt{15(15-13)(15-9)(15-8}\ m^2\\ =\sqrt{15\times2\times6\times7}\ m^2\\ =6\sqrt{35}m^2=35.5m^2 \\ The\ area\ of\ Quadrilateral\ ABCD=Area\ of\ ∆BCD+Area\ of\ ∆ABD\\ 30\ m^2+35.5\ m^2=65.5\ m^2

Question 2. Find the area of a quadrilateral ABCD in which AB = 3 cm, BC = 4 cm, CD = 4 cm, DA = 5 cm and AC = 5 cm.

Solution:

First we have to draw the diagram as given in the question: Now, apply Pythagorean theorem in \mathrm{\Delta ABC},\\ AC^2\ =\ AB^2+BC^2\\ \Rightarrow\ 52\ =\ 32+42\\ \Rightarrow\ 25\ =\ 25
Thus, it can be concluded that \mathrm{\Delta ABC} is a right angled at B.
So, area of \ \ \mathrm{\Delta BCD}\ =\ \left(\frac{1}{2}\times3\times4\right)\ =\ 6\ cm^2
The semi perimeter of \mathrm{\Delta ACD}\ \left(s\right)=\ \left(\frac{perimeter}{2}\right)\ =\frac{5+5+4}{2}\ cm\ =\frac{14}{2}\ cm\ =\ 7\ m
Now, using Heron’s formula we get,
Area\ of\ \mathrm{\Delta ACD}=\sqrt{s(s-a)(s-b)(s-c)}\\ =[\sqrt{7\left(7-5\right)\left(7-5\right)\left(7-4\right)}\ Cm^2\\ =(\sqrt{7\times2\times2\times3}\\ =2\sqrt{21}\ cm^2\\ =9.17cm^2

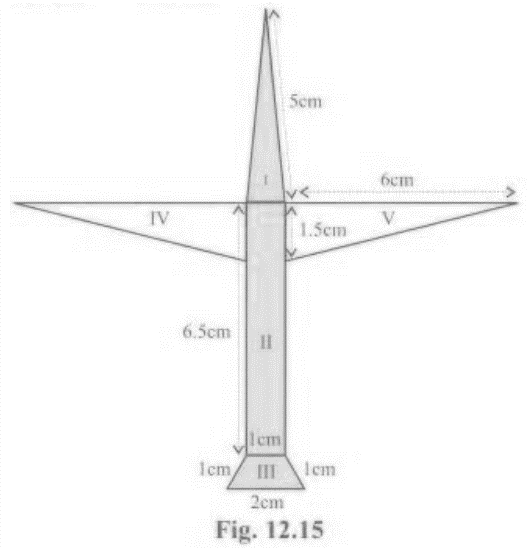

Question 3. Radha made a picture of an airplane with coloured paper as shown in Fig 12.15. Find the total area of the paper used. Solution:

For the triangle I Section:

It is an isosceles triangle and the sides are 5 cm, 1 cm and 5 cm
Perimeter = 5+5+1 = 11 cm
So, semi perimeter = 5.5 cm
Using Heron’s formula,
Area\ =\ \sqrt{s(s-a)(s-b)(s-c)}\\ =√([5.5(5.5-5)(5.5-5)(5.5-1)]) cm^2\\ =√([5.5×0.5×0.5×4.5]) cm^2\\ =0.75\sqrt{11}cm^2\\ =\ 0.75\ \times\ 3.317cm^2\\ =\ 2.488cm^2\ (approx)

For the quadrilateral II Section:
This quadrilateral is a rectangle with length and breadth as 6.5 cm and 1 cm respectively.
∴ Area\ =\ 6.5\times1\ cm^2=6.5\ cm^2

For the quadrilateral III section:
It is a trapezoid with 2 sides as 1 cm each and the third side as 2 cm.
Area\ of\ the\ trapezoid\ =\ Area\ of\ the\ parallelogram\ +\ Area\ of\ the\ equilateral\ triangle
The perpendicular height of the parallelogram will be
=(\sqrt{1^2-\left(0.5\right)^2}\\ =0.86\ cm
And, the area of the equilateral triangle will be
\left(\sqrt{\frac{3}{4}}\times a^2\right)=0.43\\ \therefore\ Area\ of\ the\ trapezoid\ =\ 0.86+0.43\ =\ 1.3\ cm^2\ (approximately).

For triangle IV and V:
These triangles are 2 congruent right angled triangles having the base as 6 cm and height 1.5 cm
Area triangles IV and V\ =\ 2\times\left(\frac{1}{2}\times6\times1.5\right)cm^2\ =\ 9\ cm^2
So, the total area of the paper used = \left(2.488+6.5+1.3+9\right)cm^2\ =\ 19.3\ cm^2

Question 4. A triangle and a parallelogram have the same base and the same area. If the sides of the triangle are 26 cm, 28 cm and 30 cm, and the parallelogram stands on the base 28 cm, find the height of the parallelogram.

Solution:

Given in the question,
That the parallelogram and triangle have equal areas.
The sides of the triangle are given as 26 cm, 28 cm and 30 cm.
So, the perimeter = 26+28+30 = 84 cm
And its semi perimeter = \frac{84}{2} = 42 cm
Now, by using Heron’s formula, area of the triangle
= \sqrt{s(s-a)(s-b)(s-c)}\\ =√([42(42-26)(42-28)(42-30)] ) cm^2\\ =√([42×16×14×12] ) cm^2\\ =336\ cm^2
Let us consider the height of the Parallelogram be h.
As\ the\ area\ of\ parallelogram=area\ of\ the\ triangle\\ 28\times h=336\ cm^2\\ h=\frac{336}{28}cm\
Hence, the height of the parallelogram is 12 cm.

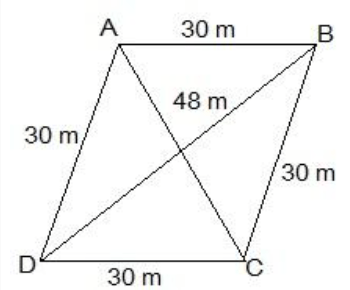

Question 5. A rhombus shaped field has green grass for 18 cows to graze. If each side of the rhombus is 30 m and its longer diagonal is 48 m, how much area of grass field will each cow be getting?

Solution:

First, make a rhombus-shaped field with ABCD vertices. The rhombus is divided into two congruent triangles with equal areas by the diagonal AC. The diagram is shown below. Consider the triangle BCD,
Its semi-perimeter = \frac{(48 + 30 + 30)}{2} = 54 m
Using Heron’s formula we get,
Area\ of\ the\ \mathrm{\Delta BCD}\ =\ \sqrt{s(s-a)(s-b)(s-c)}\\ =\left(\sqrt{54\left(54-48\right)\left(54-30\right)\left(54-30\right)}\right)m^2 \\ =\sqrt{54\times6\times24\times24}\ m^2\\ =432m^2\\ Area\ of\ field=2\times area\ of\ the\ ∆BCD=(2×432) m^2=864 m^2
Hence, the area of the grass field that each cow will be getting is:
\left(\frac{864}{18}\right)m^2=48 m^2

Question 6. An umbrella is made by stitching 10 triangular pieces of cloth of two different colors (see Fig.12.16), each piece measuring 20 cm, 50 cm and 50 cm. How much cloth of each color is required for the umbrella? Solution:

For each triangular piece, The semi perimeter will be
s = \frac{(50+50+20)}{2}\\ \frac{120}{2}
= 60cm
Using Heron’s formula we get,
Area of the triangular piece
=\sqrt{s(s-a)(s-b)(s-c)}\\ =√([60(60-50)(60-50)(60-20)]) cm^2\\ =√([60×10×10×40]) cm^2\\ =200\sqrt6cm^2
The area of all the triangular pieces= 5\times200\sqrt6cm^2=1000\sqrt6cm^2

Question 7. A kite in the shape of a square with a diagonal 32 cm and an isosceles triangle of base 8 cm and sides 6 cm each is to be made of three different shades as shown in Fig. 12.17. How much paper of each shade has been used in it? Solution:

As the kite is in the shape of a square, its area will be
A\ =\ \left(\frac{1}{2}\right)\times\left(diagonal\right)^2

Area of the kite
=\ \left(\frac{1}{2}\right)\times32\times32\ =\ 512\ cm^2. \\ The\ area\ of\ shade\ I\ =\ Area\ of\ shade\ II \\ \frac{512}{2}cm^2\ =\ 256\ cm^2
So, the total area of the paper that is required in each shade = 256\ cm^2

For the triangle section (III),
The sides are given as 6 cm, 6 cm and 8 cm
Now, the semi perimeter of this isosceles triangle = \frac{(6+6+8)}{2} = 10cm
By using Heron’s formula, the area of the III triangular piece will be
=\sqrt{s(s-a)(s-b)(s-c)}\\ =\sqrt{[10(10-6)(10-6)(10-8)}cm^2\\ =\sqrt{(10\times4\times4\times2)}cm^2\\ =8\sqrt5\ cm^2=17.92\ cm^2\ \left(approx\right).\

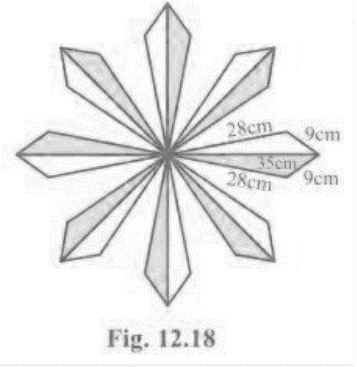

Question 8. A floral design on a floor is made up of 16 tiles which are triangular, the sides of the triangle being 9 cm, 28 cm and 35 cm (see Fig. 12.18). Find the cost of polishing the tiles at the rate of 50p per cm2 . Solution:

The semi perimeter of the each triangular shape = \frac{(28+9+35)}{2} = 36cm
By using Heron’s formula we get,
The area of each triangular shape will be:
=\sqrt{s(s-a)(s-b)(s-c)}\\ =(\sqrt{36\times(36-35)\times(36-28)\times(36-9)}\\ =\sqrt{36\times1\times8\times27}\ cm^2\\ =36\sqrt6\ cm^2 =88.2\ cm^2
Now, the total area of 16\ tiles\ =\ 16\times88.2\ cm^2\ =\ 1411.2\ cm^2
It is given that the polishing cost of tile= \ 50\ paise/cm^2
∴ The total polishing cost of the tiles = Rs. (1411.2×0.5) = Rs. 705.6

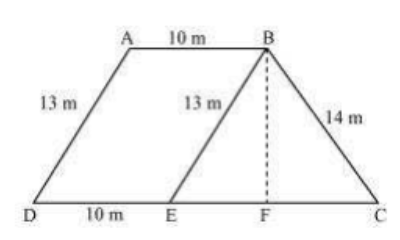

Question 9. A field is in the shape of a trapezium whose parallel sides are 25 m and 10 m. The non-parallel sides are 14 m and 13 m. Find the area of the field.

Solution:

Create a line segment BE that is parallel to the line AD. Then, on line segment CD, draw a perpendicular from B. Now, it can be seen that the quadrilateral ABED is a parallelogram. So,
AB = ED = 10 m
AD = BE = 13 m
EC = 25-ED = 25-10 = 15 m
Now, consider the triangle BEC,
Its semi perimeter (s) = \frac{(13+14+15)}{2} = 21 m
By using Heron’s formula,
Area of ΔBEC
=\sqrt{s(s-a)(s-b)(s-c)}\\ (\sqrt{21\times\left(21-13\right)\left(21-14\right)\left(21-15\right)})(cm^2)\\ =\sqrt{21\times8\times7\times6}\ m^2\\ =\sqrt{84}m^2
We also know that the area of \ \mathrm{\Delta BEC}\ =\ \left(\frac{1}{2}\right)\times CE\times BF\\ 84\ cm^2\ =\ \left(\frac{1}{2}\right)\times15\times BF\\ BF\ =\ \left(\frac{168}{15}\right)\ cm\ =\ 11.2\ cm .
So, the total area of ABED will be BF\times DE\ i.e.\ 11.2\times10\ =\ 112\ m^2
∴ Area of the field \ =\ 84+112\ =\ 196\ m^2
